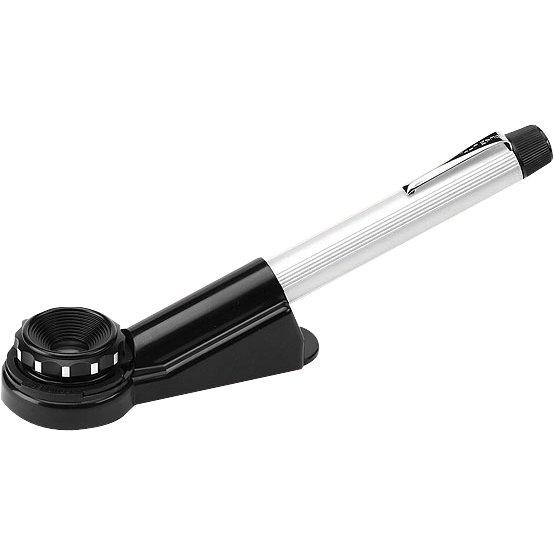

Peak 2055-L LED Illuminated Measuring Magnifier with Scale, 20x

Discontinued Product The Peak 2055-L Scale Loupe is identical to the Peak 2055 magnifier with magnification factor of 20x in combination with a glass scale having 0.1 mm graduations, however this model is integrated into an illumination unit consisting of a LED penlight and holder with two 1.5 volt AAA batteries. Batteries are not included. The 2055-L scale loupe has a large field of view (12 mm) and measuring range in relation to the magnification factor, a perfect optical system consisting of two groups each with three lenses. Accurate and sharp measurements can be obtained with clear erect images. Ideal for applications where a 10x magnifier is not sufficient but a 30x is too high for convenient use. The field curvature as well as the lateral chromatic deviation are perfectly corrected by the combination of four lenses. Two of the lenses are produced using a new type of optical glass. Moreover all air/glass interfaces have a multiple coatings to prevent internal reflections (anti-reflex coating). An additional white scale is available for this measuring magnifier (see related products). The magnifier can be separated from the illumination unit. Made in Japan. Magnification factor 20 x Focusable Yes Field of view 12 mm. Measuring length 8 mm. Scale 0.1 mm. Optical characteristics Achromatic, distortion-free Dimensions 184 x 43 x 65 mm Weight 115 grams (incl. batteries) Case 190 x 55 x 75 mm Standard scale included as standard feature Country of manufacture  Japan Box Contains: 2055-L Scale Loupe, case, cleaning cloth and instructions (batteries not included) Calibration Calibration of this measuring magnifier is available as an extra service in accordance with UKAS. To order a calibration certificate for this magnifier fitted with the standard graticule scale the part number: S-2055-S-UK should be added to your order. If you require calibration for one of the other available graticules please contact us to obtain a quotation. About Measuring Magnifiers Measuring magnifiers, or scale loupes as they are often called, are magnifiers with an integrated graticule scale which is placed on the area to be inspected for taking precise measurements of small parts, such as length, angles, diameters, line thickness, thread pitches. We stock the widest selection of professional scale loupes, comparators, graticule magnifiers and accessories with superior optical quality from premium brands such as Peak of Japan.
