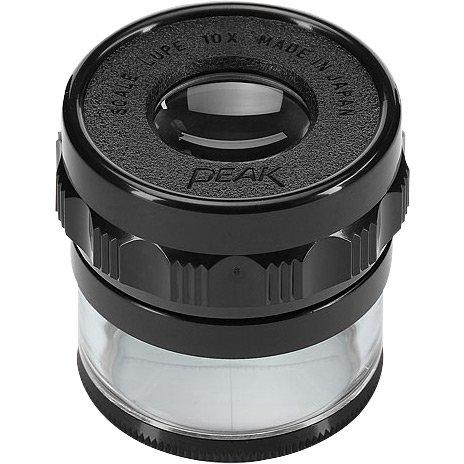

Peak 1983 Scale Loupe Measuring Magnifier 0.1mm Scale, 10x

<p>The special feature of the PEAK 1983 Scale Loupe is the extremely large field of view and measuring area in relation to the 10x magnification. The <strong>achromatic</strong> optical system consists of four lenses subdivided into two groups providing<strong> distortion free colour corrected viewing</strong>. A measuring <strong>graticule scale with 0.1mm graduations</strong> and 30mm length is included and maybe easily removed and replaced. The scales are placed on the area to be measured for precise measurement.</p> <p>The Peak 1983 Measuring magnifier has a <strong>smooth focusing ring</strong> for manual adjustment to ensure a clear image.</p> <p><strong>Sixteen different black graticule scales</strong> and fifteen white scales are also available with inch, metric and special graduations for measurement of small parts, angles, holes, diameters, thread size, etc. and maybe ordered at the same time or later. The standard scale is included and is easily removed by unscrewing the retaining ring.</p> <p>The lens in this magnifier is made from glass and coated to prevent reflection. Also available with illumination unit (search for 2028). Made in Japan.</p> <table> <tbody> <tr> <td><strong>Magnification factor</strong></td> <td><strong>10 x</strong></td> </tr> <tr> <td>Focusable</td> <td>Yes</td> </tr> <tr> <td>Field of view</td> <td>34 mm.</td> </tr> <tr> <td>Measuring length</td> <td>30 mm.</td> </tr> <tr> <td>Scale</td> <td>0.1 mm.</td> </tr> <tr> <td>Optical characteristics</td> <td>Achromatic, distortion-free</td> </tr> <tr> <td>Dimensions</td> <td>46 x 44 mm</td> </tr> <tr> <td>Weight</td> <td>74 grams</td> </tr> <tr> <td>Standard scale</td> <td>included as standard feature</td> </tr> <tr> <td>Country of manufacture </td> <td>Japan</td> </tr> </tbody> </table> <p><strong>Box Contains:</strong> Peak 1983 Scale Loupe, Standard Scale and instructions</p> <h3>Calibration</h3> <p>Calibration of this measuring magnifier is available as an extra service in accordance with UKAS. To order a calibration certificate for this magnifier fitted with the standard graticule scale the part number: S-1983-S-UK should be added to your order. If you require calibration for one of the other available graticules please contact us to obtain a quotation.</p> <h3>About Measuring Magnifiers</h3> <p>Measuring magnifiers, or scale loupes as they are often called, are magnifiers with an integrated graticule scale which is placed on the area to be inspected for taking precise measurements of small parts, such as length, angles, diameters, line thickness, thread pitches. We stock the widest selection of professional scale loupes, comparators, graticule magnifiers and accessories with superior optical quality from premium brands such as Peak of Japan.</p>
