Peak 1976 Measuring Magnifier with Graticule Set, 7x

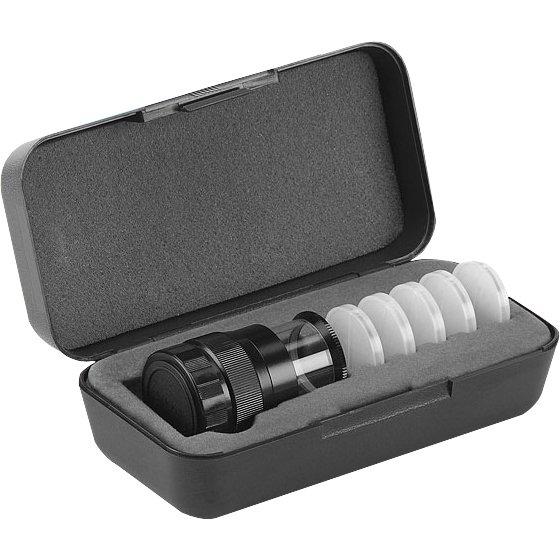

Peak 1976 Scale Loupe Measuring Magnifier with 5 Graticule Set, 7x The Peak 1976 Scale Loupe set includes the PEAK 1975 magnifier in addition to popular scales no. S-1975-2, S-1975-3, S-1975-7, S-1975-8 and S-1975-10. The scales can also be put together as required from fifteen black and three white scales (see related products). Surcharge for white scales will apply. Contact us if you want a different combination. These magnifiers are coated to prevent reflection. Made in Japan. Magnification factor 7 x Focusable Yes Field of view 24 mm. Measuring length 20 mm. Scale 0.1 mm, No. S-1975-8 Optical characteristics Achromatic, distortion-free Dimensions 36 x 62 mm Weight 128 grams Case 125 x 60 x 60 mm Country of manufacture Japan Box Contains: Peak 1975 Scale Loupe, Scales S-1975-2, S-1975-3, S-1975-7, S-1975-8, S-1975-10, box and instructions About Measuring Magnifiers Measuring magnifiers, or scale loupes as they are sometimes called, are magnifiers with an integrated graticule scale which is placed on the area to be inspected for taking precise measurements of small parts, such as length, angles, diameters, line thickness, thread pitches. We stock the widest selection of professional scale loupes, comparators, graticule magnifiers and accessories with superior optical quality from premium brands such as Peak of Japan.
