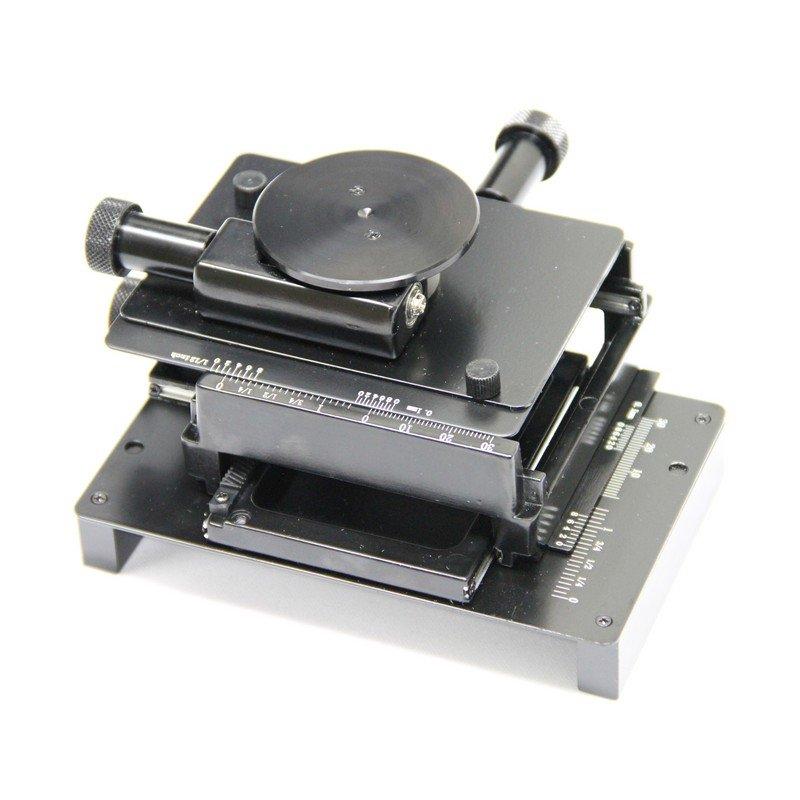

Dino-Lite MS15X-S1 Precision X-Y Microscope Stage with RotationThe Dino-Lite MS15X-S1 is an X-Y stage with removable rotating table which is designed for use with Dino-Lite digital microscopes in all sorts of applications that require fine X-Y and/or rotational control over the object being inspected.MS15X-S1 stage provides a 105mm x 80mm platform with 60mm of fine control in both the X and Y directions, a vernier scale is fitted with both millimeters and inches and graduations of 0.1mm and 1/12" respectively. When used with the rotating table the MS15X-S1 provides a 50mm diameter platform with 360 degree of rotation, while still offering fine control over the X and Y directions.The MS15X can be used free standing or (using the supplied clamps) connected to the base of either the MS35B or MS36B pole stands to offer a professional and flexible inspection solution for the Dino-Lite range.For a larger X-Y inspection table solution consider the MS25X.
