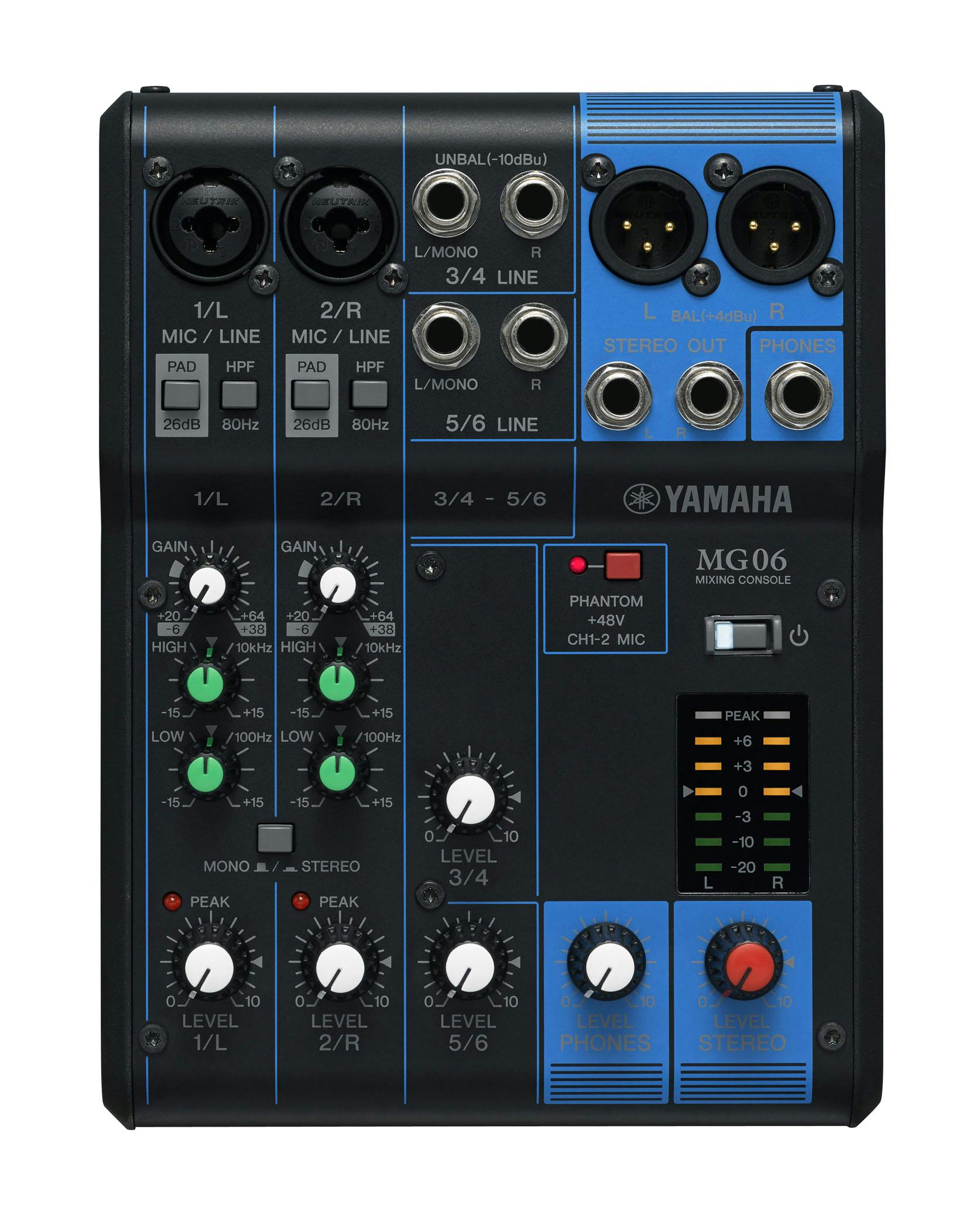

Yamaha MG06 6-Channel Mixing Desk

The 3rd generation of the Yamaha MG Mixer brings with it some neat updated features, great build quality and the same great sound and flexibility that we have come to expect from a Yamaha mixing console. Built with a sturdy metal chassis, the MG III series mixers are designed to last.The MG-06 is a 6 channel mini mixer with 2 D-Pre Mic inputs for super-quiet operation. The MG-06 has +48v phantom power for condenser mics and two balanced outputs to ensure that no matter how big or small your operation is, the MG06 will act as the lynch-pin mixing desk that you can depend on.Yamaha MG06 Features6-Channel Mixing Console Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo) 1 Stereo Bus D-PRE mic preamps with an inverted Darlington circuit XLR balanced outputs PAD switch on mono inputs +48V phantom power Metal chassis Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9x 2.4x 7.9) Net Weight: 0.9 kg (1.98 lbs.)Heres what Yamaha say about the Yamaha MG MkIII MixersThe third generation of the acclaimed MG Series, these compact mixing consoles focus on delivering high quality sound for a diverse range of mixing environments. With the same mic preamps as our high-end professional mixers, the MG Series provides serious sound with the reliability and performance this series is renowned for.For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.SpecificationsI/OPhantom power+48 VInput ChannelsMono[MIC/LINE]2Stereo[LINE]2Output ChannelsSTEREO OUT2PHONES1BusStereo: 1Input Channel FunctionPAD26 dB (Mono)HPF80 Hz, 12 dB/oct (Mono)EQ HIGH(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelvingEQ LOW(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelvingPEAK LEDLED turns on when post EQ signal reaches 3 dB below clippingLevel Meter2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]Total harmonic distortion0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: MinFrequency response+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: MinHum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150, GAIN knob: Max)Residual output noise-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)Crosstalk-88 dBPower requirementsPA-130 (DC12 V/1.0 A, Cable length=1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length=1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by YamahaPower consumption12 WDimensionsW149 mm (5.9)H62 mm (2.4)D
