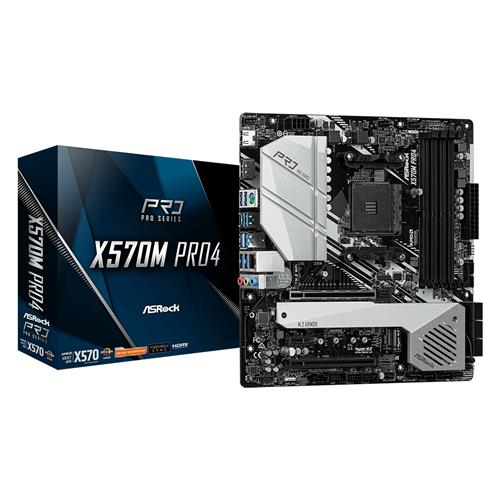

Asrock X570M Pro4 AMD X570 Socket AM4 micro ATX

Supports AMD AM4 Socket Ryzen? 2000 and 3000 Series processors10 Power Phase DesignSupports DDR4 4200+ (OC)2 PCIe 4.0 x16 1 PCIe 4.0 x1 1 M.2(Key E) For WiFiAMD Quad CrossFireX? and CrossFireX?Graphics Output Options: HDMI DisplayPort7.1 CH HD Audio (Realtek ALC1200 Audio Codec) ELNA Audio Caps8 SATA3 1 Hyper M.2 (PCIe Gen4 x4 & SATA3) 1 Hyper M.2 (PCIe Gen4 x4)2 USB 3.2 Gen2 (Rear Type A+C) 8 USB 3.2 Gen1 (2 Front 6 Rear)Intel? Gigabit LANASRock Polychrome SYNC<B>REVOLUTIONARY X570 MOTHERBOARDS : Your PC Transformed</B><B>Dual Hyper M.2 For SSD</B>Supports the next generation PCI Express 4.0 M.2 SSDs it is capable of perform twice the speed compared to previous 3rd generation giving a lightning fast data transferring experience.<B>STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0</B>The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock?s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.<B>Dual USB 3.2 Gen2 (Type-A + Type-C)</B>This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.<B>RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB</B>This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip CPU fans coolers chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.<B>Thunderbolt 3 AIC Header</B>Thunderbolt 3 is no longer limited to certain chipset ASRock is the first motherboard manufacturer to skillfully implement the Thunderbolt 3 technology onto AMD X570 motherboards. All you need is a Thunderbolt 3 AIC R2.0 card!<B>Specifications</B><B>Unique Feature</B>ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4 & SATA3)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB Audio LAN Ports)ASRock Live Update & APP Shop<B>CPU</B>Supports AMD AM4 socket Ryzen? 2000 and 3000 series processorsDigi Power design10 Power Phase design<B>Chipset</B>AMD X570<B>Memory</B>Dual Channel DDR4 Memory Technology4 x DDR4 DIMM SlotsAMD Ryzen series CPUs (Matisse) support DDR4 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC un-buffered memoryAMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC un-buffered memoryAMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC un-buffered memoryMax. capacity of system memory: 128GB15? Gold Contact in DIMM Slots<B>BIOS</B>256Mb AMI UEFI Legal BIOS with GUI supportSupports "Plug and Play"ACPI 5.1 compliance wake up eventsSupports jumperfreeSMBIOS 2.3 supportCPU VCORE CPU VDDCR_SOC DRAM VPPM PREM VDD_CLDO PERM VDDCR_SOC +1.8V VDDP Voltage Multi-adjustment<B>Graphics</B>Integrated AMD Radeon? Vega Series Graphics in Ryzen Series APU*DirectX 12 Pixel Shader 5.0Shared memory default 2GB. Max Shared memory supports up to 16GB.**Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllersSupports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60HzSupports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60HzSupports Auto Lip Sync Deep Color (12bpc) xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)Supports HDR (High Dynamic Range) with HDMI 2.0Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 PortsSupports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 PortsSupports Microsoft? PlayReady<B>Audio</B>7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)Premium Blu-ray Audio supportSupports Surge ProtectionELNA Audio CapsPCB Isolate ShieldingIndividual PCB Layers for R/L Audio Channel<B>LAN</B>Gigabit LAN 10/100/1000 Mb/sGiga PHY Intel? I211ATSupports Wake-On-LANSupports Lightning/ESD ProtectionSupports Energy Efficient Ethernet 802.3azSupports PXE<B>Slots</B>AMD Ryzen series CPUs (Matisse)- 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))AMD Ryzen series CPUs (Pinnacle Ridge)- 2 x PCI Express 3.0 x16 Slots (PCIE1/PC
