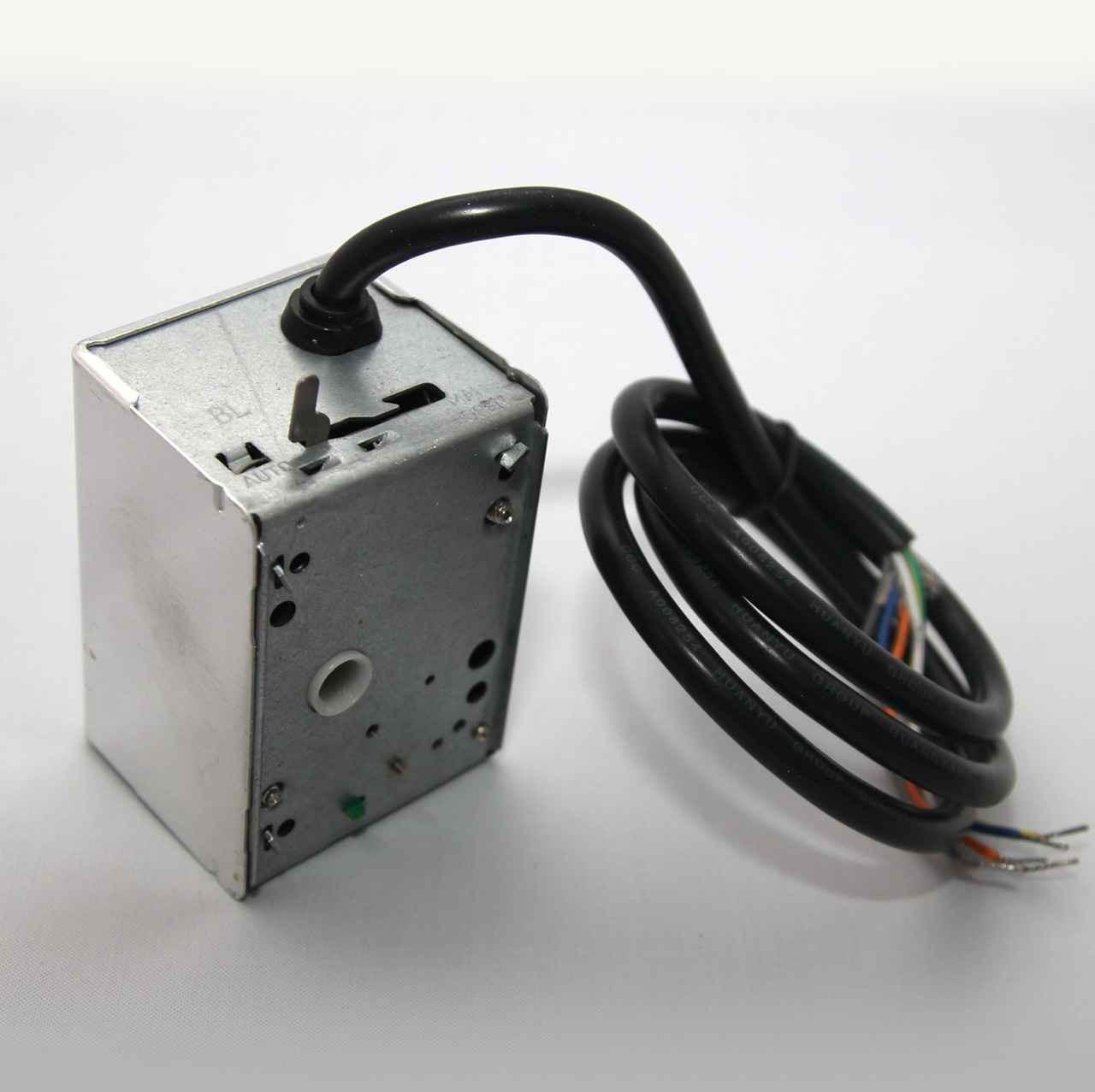

Banico 3 Port 22mm Motorised Zone Valve Head Fits all 3-port zone valve H-ZVM

Banico 3 Port 22mm Motorised Zone Valve Head Fits all 3-port zone valves H-ZVM PRODUCT FEATURESCan Replace Honeywell V4073 A1039, V4073 A1054, V4073 A1088, V4073 A1062This is the Banico 3 Port 22mm Motorised Zone Valve Head Fits all 3-port zone valve.The ZV range 3-port spring return valve has been designed in general to be used in commercial, industrial applications and on central heating systems which when correctly wired with an appropriate room thermostat, cylinder thermostat and programmer will control the water flow from the boiler to hot water and from the boiler to central heating.Honeywell motorised valves made before 1987 will also require a 40003918-007 conversion kit Valves made after 1987 can be identified by a bump on the top of the powerhead British gas no. 378454Banico Tower Horstmann Save on the large cost of plumbing, and fitting a new 3 port valve;Just replace the head This head has the same design, dimensions and cable colours as the Honeywell Three Port Head Fits 22 or 28mm Switch Rating 3Amp 240 Volt Supply Manual Lever Override Valve Normally Closed Common Cable Colours Brown - Live Orange - End Switch Out Grey - End Switch In Blue - Neutral Green/Yellow - Earth. Only Suitable for 5 wire connections not 6FITTING INSTRUCTIONS:See last photo of this listing showing how to replace the ActuatorNOTE: When putting the head into manual mode, the lever should be moved gently and slowly across and hooked onto the manual side. As the cogs and mechanism are calibrated to move at a specific rate (dictated by the synhcronous motor), if the lever is moved quickly, gears can sometimes slip. For putting in manual mode and this guidance not followed it can cause damage to the mechanism.Once in manual mode, the head should be able to fit onto the body. This may require some wiggling of the head, however the mechanism should line up parallel and allow the head to sit flush on the body. The manufacturing process and the component composition is such that it is not possible for the mechanism, motor or stem to be out of alignment - There are fitting holes and grooves that are built into the design to ensure fitting during assembly can only be done correctly.Any problems with fittings please contact us in the first instances explaining any issues and with photos of the old product you are replacing showing all codes.
